Rada Mono 125 & 126 Flushing System – for Urinals

Rada Mono urinal flush sensors are discretely located in the ceiling

  • Automatic detection of user activates the urinal flush for improved hygiene
  • Great for water savings, as it controls flushing for a single stall
  • Ceiling mounted passive infra-red sensor

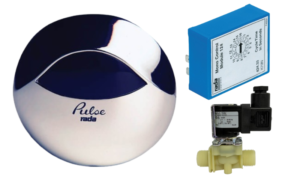

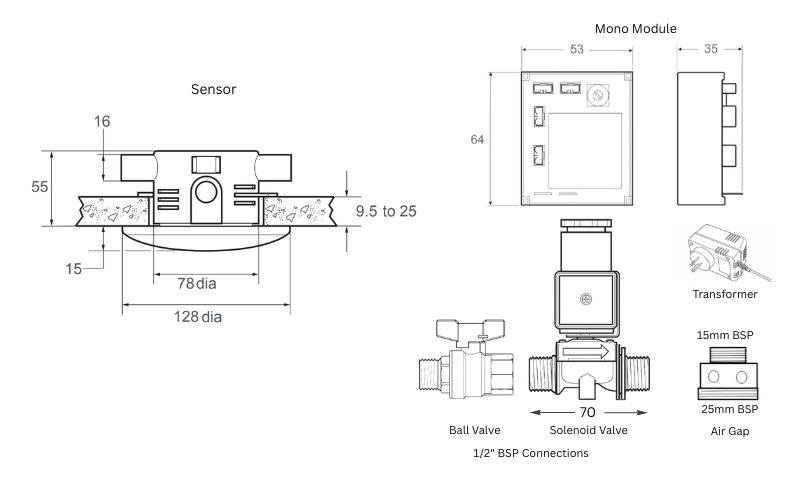

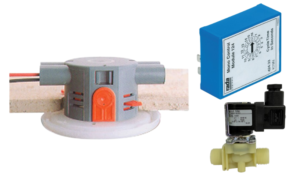

  • Supplied with sensor, Mono control module, solenoid valve, isolating ball valve, flow controller, air gap & 12V AC transformer
  • WELS 5 Stars, 0.9 litres per flush per stall (Rada 125 sensor)
  • AS 1172.2 WaterMark Certified


Applications

  • Gyms, aquatic & leisure centres
  • Sports stadiums, schools & universities
  • Hotels & restaurants


Downloads

BIM & CAD

Specify as Follows

One ceiling mounted Rada Sensor urinal flushing system for ‘no-touch’ flushing to serve a single stall (125 system). Complete with passive infra-red sensor, Mono Control Module, 1/2” BSPM solenoid valve, isolating ball valve, 12V AC transformer and air gap.
