Rada 215dk Thermostatic Mixing Valve with Cold Feed

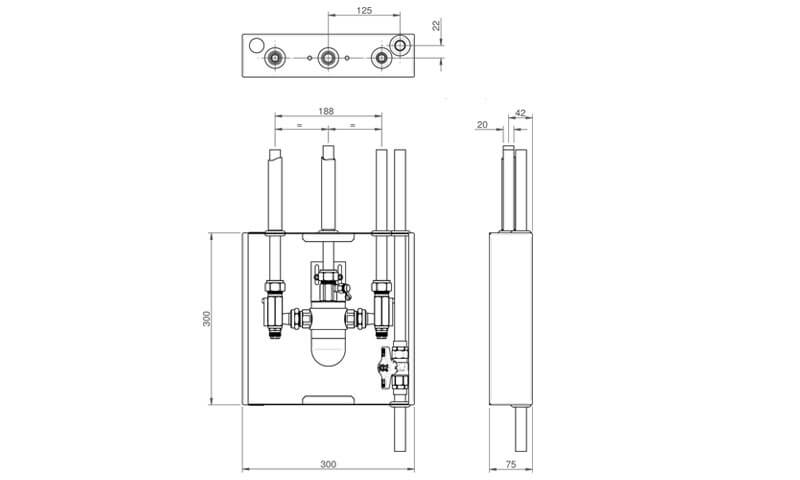

The Rada 215dk Thermostatic Mixing Valve in a recessed or exposed galvanised box (300 x 300 x 75mm) with a cold feed/bypass and stainless steel lid.

  • WaterMark: AS 4032.1
  • NSW Health Approved
  • Incorporates the Radatherm sealed-for-life cartridge for low maintenance
  • Check valve and strainer screens can be easily removed from the body of the valve without disconnecting the pipework



Applications

  • Hospitals & medical centres
  • Nursing homes
  • Childcare centres, schools & universities
  • Cupboard or duct installation

Downloads

BIM & CAD


DOWNLOAD REVIT & ARCHICAD LIBRARY

Specify as Follows

Rada 215dk TMV with PRV in a recessed galvanised  box (300 x 300 x 75mm) with stainless steel lid. Flow rate 2.5 – 50 L/min. Incorporating a sealed-for-life Radatherm cartridge; inlet check valve & strainer cartridges; inlet isolating ball valves; outlet temperature test point; and 20mm copper inlet & outlet pipework. With cold water bypass.

Product Variants

  • 40861RB300CF - Rada 215dk TMV in a recessed galvanised box with stainless steel lid (with cold water feed)
  • 40861EBG300CF - Rada 215dk TMV in an exposed galvanised box and lid (with cold water feed)
