Rada 320 IF Thermostatic Mixing Valve

The Rada 320 IF thermostatic mixing valve provides safe, reliable and accurate warm water to up to 12 outlets simultaneously (CHECK).

  • Watermark: AS 4032.1
  • NSW Health Approved

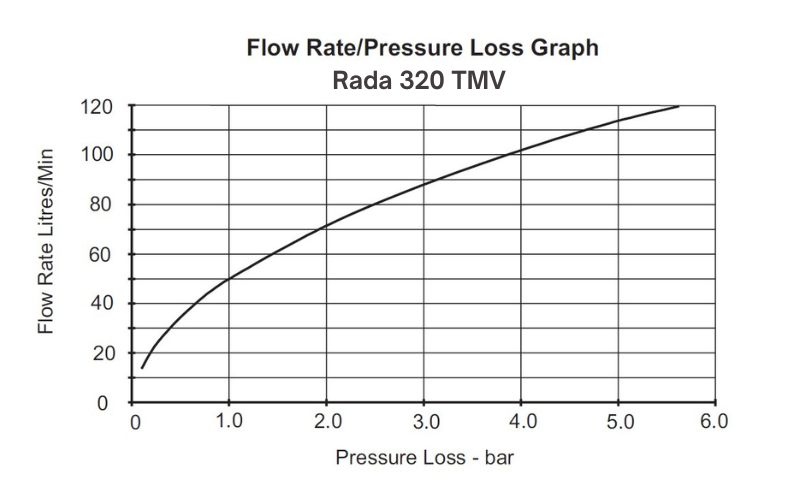

  • Flow rate range: min. of 6 l/min up to a max. of 120 l/min
  • Can be used with multiple basin or shower installations.
  • Ideal for retrofit or new buildings
  • Combines long-term durability and reliability with low cost maintenance

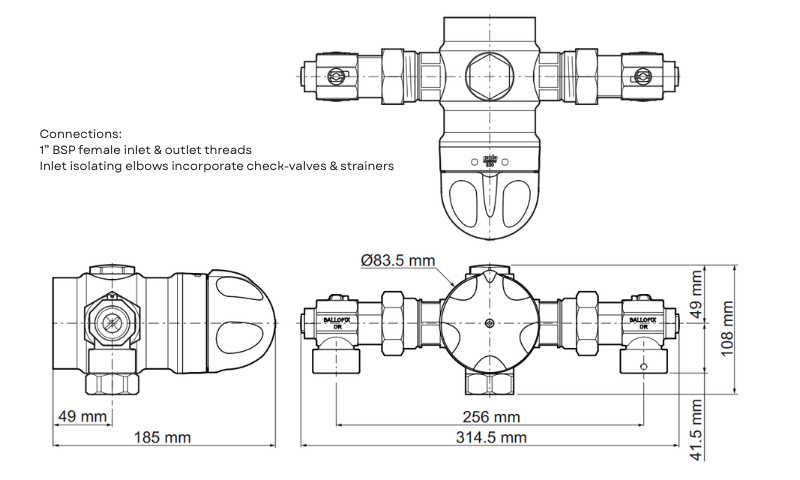

  • Angle inlet elbows incorporate isolating ball valves, check-valves and strainers. Inlets & outlet connections: 1” BSP female thread
  • The outlet can be altered to bottom outlet if required by repositioning the drain plug



Applications

  • Gyms, aquatic & leisure centres, sports stadiums
  • Schools & universities
  • Healthcare facilities & nursing homes

Downloads

BIM & CAD


    Specify as Follows

    Group thermostatic mixing valve with a flow rate of 6 – 120 L/min incorporating the patented sealed-for-life, Radatherm cartridge, isolating ball valves, inlet check-valves & strainers plus 1” BSPF connections. Approvals: AS 4032.1 and acceptable for use in Health Care facilities

    Product Variants

    • 1847.014 - Rada 320 IF Thermostatic Mixing Valve
