Rada 320 M Thermostatic Mixing Valve

The Rada 320 M thermostatic mixing valve provides safe, reliable and accurate warm water to up to 12 outlets simultaneously.

  • Watermark: AS 4032.1
  • NSW Health Approved
  • Flow rate range 6 L/min to 120 L/min
  • Can be used with multiple basin or shower installations.
  • Ideal for retrofit or new buildings
  • Combines long-term durability and reliability with low cost maintenance

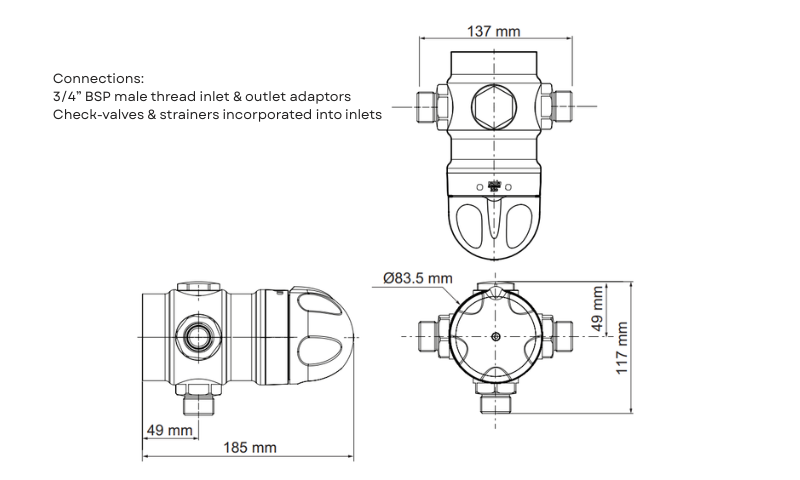

  • 3/4” BSPM threaded Inlet and outlet adaptors (check-valves incorporated in inlets)
  • The outlet can be altered to bottom outlet if required by repositioning the drain plug.



Applications

  • Gyms, aquatic & leisure centres, sports stadiums
  • Schools & universities
  • Healthcare facilities & nursing homes

Downloads

BIM & CAD


    Specify as Follows

    Group thermostatic mixing valve with a flow rate of 6 – 120 L/min incorporating the patented sealed-for-life, Radatherm cartridge, with inlet check-valves & strainers and 3/4” BSPM connections. Approvals: AS 4032.1 and acceptable for use in Health Care facilities

    Product Variants

    • 1847.016 - Rada 320 M Thermostatic Mixing Valve
