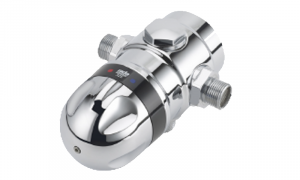

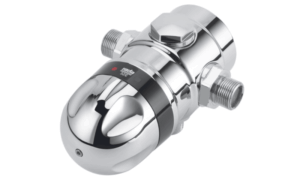

Rada 32E BSP Emergency Shower & Eyewash Mixing Valve
The Rada 32E BSP delivers 25°C tepid water to Emergency Showers, Eye Wash and Eye/Face Wash fixtures, to minimise the possibility of hypothermia from cold water.
- Factory preset to 25°C blend outlet temperature
- For Emergency Showers, Eye Wash and Eye/Face Wash with flow rates of 8 L/min or more
- Each Rada 32E BSP to be installed at or near the emergency fixture
- When used for emergency showers, the Rada 32E BSP to supply water to one emergency shower only. The number of eye wash & eye/face wash is subject to flow rates/pressures.
- Not for general showering and bathing applications
- The constant cold water flow design ensures that in the event of a hot water supply failure the Rada 32E BSP will allow cold water to flow to the fixture
- For surface, duct or panel mounting

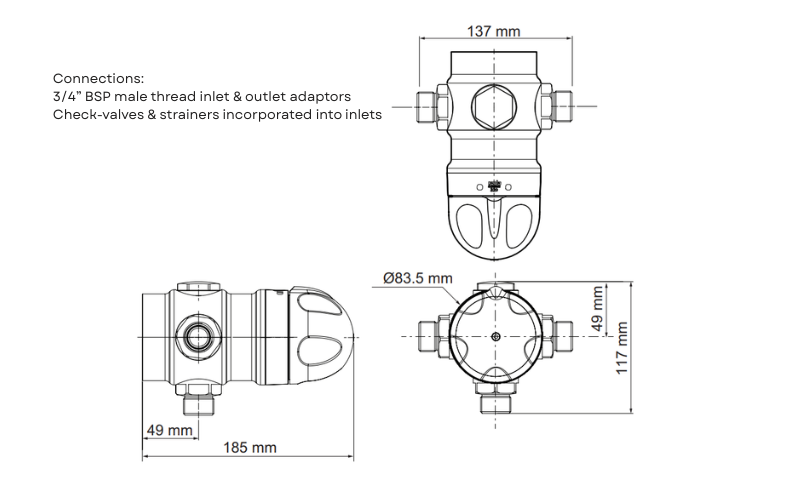

- Connections: 3/4” BSPM inlet and outlet adaptors supplied (check-valves incorporated in inlets)
- Installer to supply isolating ball valve / elbows
- Flow rate range: 8 to 120 L/min
- Product compliant with AS 4775 and AS/NZS 4020
- Product to be installed and maintained as per this product manual, local regulations and AS 4775
Applications
For Emergency Showers & Eyewash and Eye/Face wash fixtures only
- Education (Schools, Universities & TAFE)
- Laboratories and Healthcare
- Petroleum, Oil Refineries and Mining
- Chemical Manufacturing and Handling
- Food Processing
- Aquatic centres
Downloads
Specify as Follows
The Rada 32E BSP Emergency Shower & Eyewash Mixing Valve delivers 25°C tepid water to Emergency Showers, Eye Wash and Eye/Face Wash fixtures. Each Rada 32E BSP to be installed at or near the emergency fixture. When used for emergency showers, the Rada 32E BSP to supply water to one emergency shower only. Connections: 3/4” BSPM inlet and outlet adaptors supplied (check-valves incorporated in inlets). Installer to supply isolating ball valve / elbows. Flow rate range: 8 to 120 L/min. Product compliant with AS 4775 and AS/NZS 4020.
