Rada Mono 124 Sensor Operating System – for Basins
The Rada Mono 124 Ceiling Sensor System for basins saves water for commercial washrooms.
- Provides significant water, energy and cost savings
- For basins only
- Flexible programming includes:
- Flow times and automatic shut off
- No-touch sensor activation of water flow improves user hygiene
- Ceiling mounted passive infra-red sensor – controls flow of water to a single basin

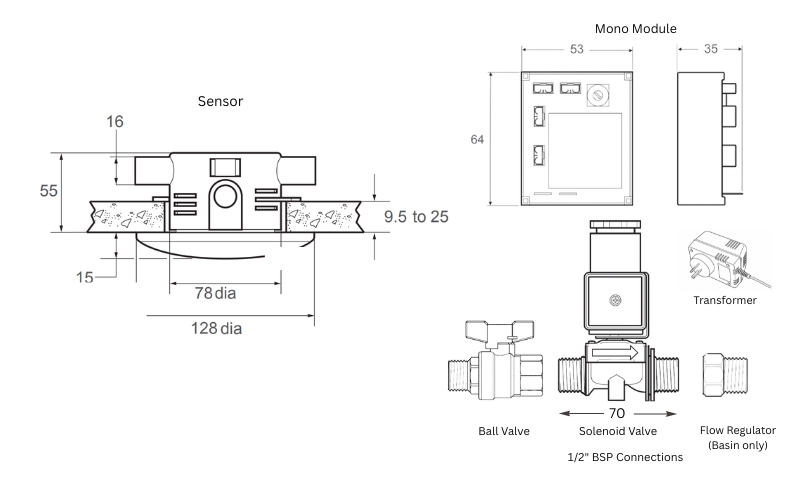

- Supplied with sensor, Mono Control Module, solenoid valve, isolating ball valve, 12V AC transformer and 6 L/min flow regulator
- WELS: 6 Stars, Flow Rate: 6.0 L/min
- AS 3718 Lead-Free WaterMark Certified
Applications
- Restaurants & bars
- Commercial office blocks
Downloads
- Brochure - Rada Pulse and Mono
- Datasheet - Rada Pulse and Mono Basin and Shower Sensors
- Specification - Rada Mono 124 Operating System
- Product Manual - Rada Mono Operating System
- PlumbingFixtures Sensor Thornthwaite RadaMono124.rfa
- Rada Mono control module.dxf
- Rada solenoid dims.dxf
- Rada Mono control module dims.dxf
BIM & CAD
Specify as Follows
Each basin outlet to be served by one ceiling mounted Rada Mono 124 ceiling sensor system for ‘no-touch’ flow control. Complete with passive infra-red sensor, Mono Control Module, 1/2” BSPM solenoid valve, isolating ball valve, 12V AC transformer and 6 L/min flow regulator. WELS: 6 Stars. AS 3718 Lead-Free WaterMark Certified.
