Rada Pulse 120 Sensor Operating System

(For showers & basins)

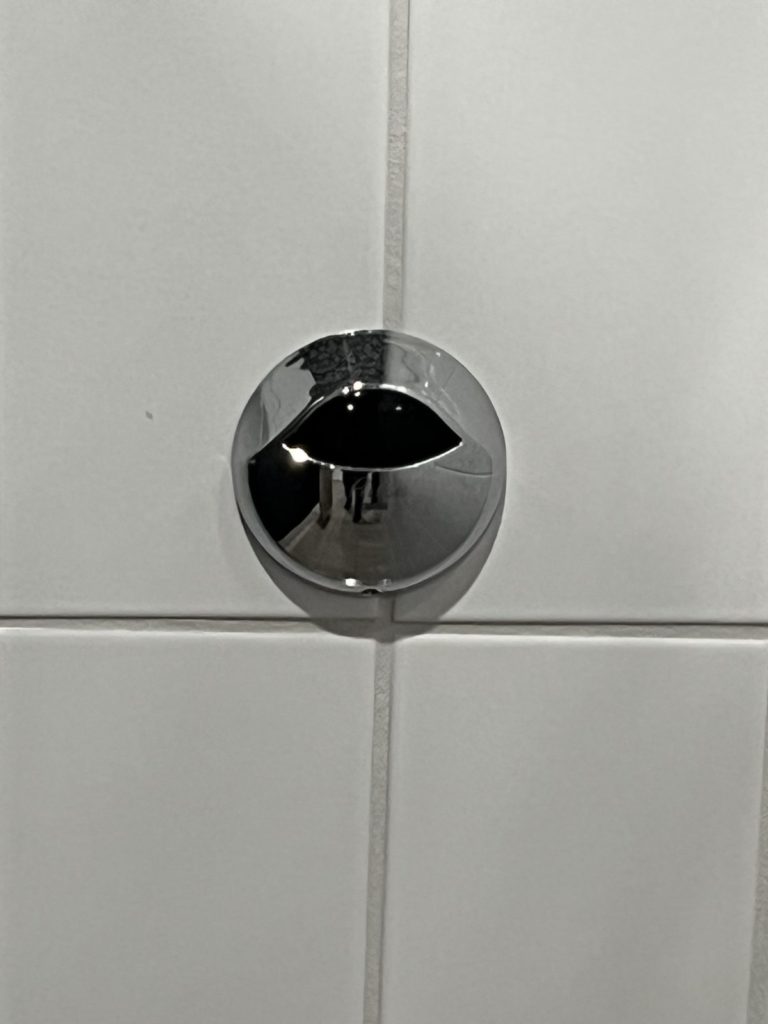

Installed as part of the Rada Pulse kit, the Rada 120 sensor adds an elegant finish to modern washrooms. This sensor can be used for basins or showers.

WELS: 6 stars | 6 l/min (basins) | AS/NZS 3718

  • Programmable flow time and automatic shut-off to save water and energy
  • No-touch activation of water flow improves user hygiene
  • Rada Pulse manages up to 10 outlets via a control box and handheld programmer



Applications

  • Gyms, aquatic & leisure centres
  • Surgical scrub areas, food processing & restaurants
  • Restaurants and office blocks
  • End of trip facilities

Downloads

BIM & CAD


DOWNLOAD REVIT & ARCHICAD LIBRARY

Specify as Follows

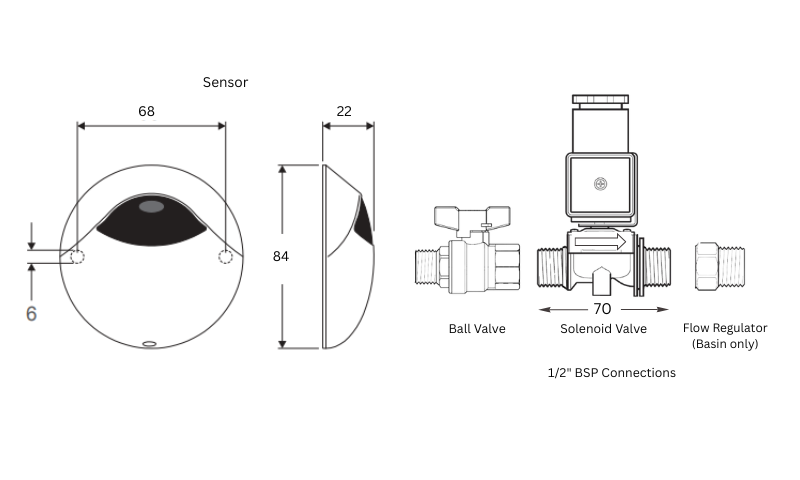

Each outlet (basin or shower) to be served by one wall mounted Rada Pulse (or Mono) 120 sensor operating system for ‘no-touch’ flow control. Complete with active infra-red sensor, 1/2” BSPM solenoid valve, isolating ball valve and 6 L/Min flow regulator (basins only). Shower flow rate is determined by shower head.

Product Variants

  • 650631 - Rada Pulse 120 sensor operating system – for basins
  • 750634 - Rada Pulse 120 sensor operating system – for showers
