Rada Pulse 125 & 126 Flushing System – for Urinals

Rada 125 and 126 urinal flush sensors are discretely located in the ceiling, and can be installed to service a single stall (Rada 125) or two stalls (Rada 126).

  • Rada 125 – WELS: 4 stars
  • Rada 126 – WELS: 1 star ATS 5200.020
  • Automatic detection of user activates the urinal flush for improved hygiene
  • Programmable flush times to suit different types of urinals
  • Great for water savings, as it controls flushing for either a single stall or two stalls
  • Regular duty flush to prevent build-up of odours



Applications

  • Gyms, aquatic & leisure centres
  • Sports stadiums, schools & universities
  • Hotels & restaurants

Downloads

BIM & CAD


DOWNLOAD REVIT & ARCHICAD LIBRARY

Specify as Follows

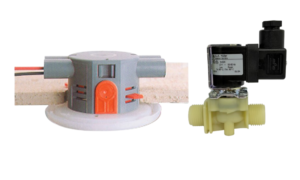

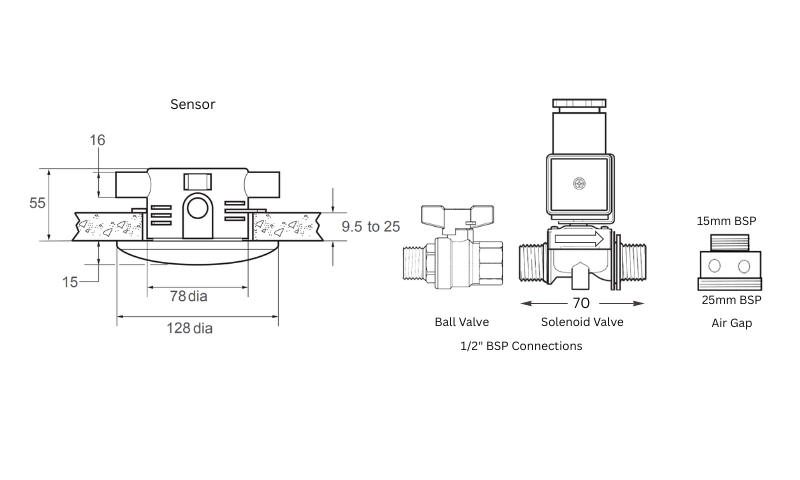

One ceiling mounted Rada Sensor urinal flushing system for ‘no-touch’ flushing to serve a single stall (125 system) or 2 stalls (126 system). Complete with passive infra-red sensor, 1/2” BSPM solenoid valve, isolating ball valve and air gap.

Product Variants

  • 850661 - Rada Pulse 125 flushing system – for urinals (1 stall)
  • 850671 - Rada Pulse 126 flushing system – for urinals (2 stalls)
