Rada Pulse 122 flushing system – for urinals (1 stall)

The Rada 122 wall-mounted urinal sensor is for single stall or single wall-hung urinals.

Automatic detection of user activates the urinal flush for improved hygiene
Great for water savings, as it controls flushing for a single stall
Regular duty flush to prevent build-up of odours

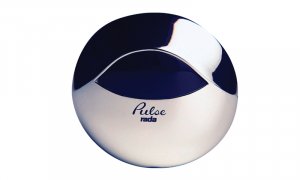

Wall mounted active infra-red sensor with 550mm detection range

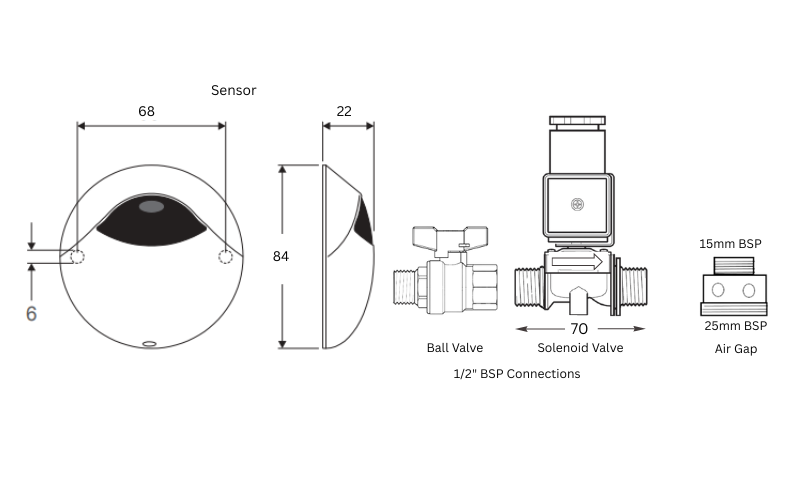

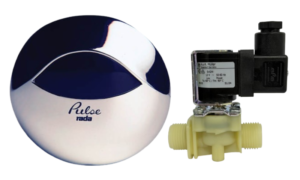

Supplied with sensor, solenoid valve, isolating ball valve, flow controller & air gap
Sensor connects to the Rada Pulse Control Box, which controls up to 10 bathroom outlets
WELS 5 Stars, 0.9 litres per flush per stall
AS 1172.2 WaterMark Certified

Product Variants

Click on a Variant(s) below to add to your Fixtures Schedule:

850641 - Rada Pulse 122 flushing system – for urinals (1 stall)

Applications

Gyms, aquatic & leisure centres
Sports stadiums, schools & universities
Hotels & restaurants

Downloads

BIM & CAD

Specify as Follows

Each urinal stall to be served by one wall mounted Rada Pulse 122 urinal flushing system for ‘no-touch’ flushing. Complete with active infra-red sensor, 1/2” BSPM solenoid valve, isolating ball valve, flow controller and air gap. WELS 5 Stars, 0.9 litres per flush per stall. AS 1172.2 WaterMark Certified.
